Name: Gate valve 181 EPDM wedge PN10/16 DIN F4
SKU: 10557
Price: 56.928571428571 EUR
Availability: InStock

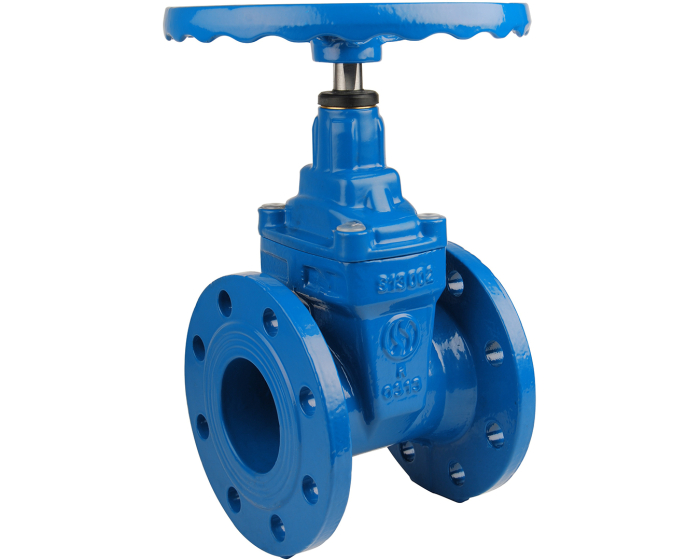

Gate valve 181 EPDM wedge PN10/16 DIN F4

€56.93 (excl. btw)

The 181 series gate valve, rubber, ACS, counterclockwise closing, EPDM gate, DIN 3202 F4 gap for drinking water, water treatment and supply and irrigation

In stock Subject prior to sales
Categories : Schuifafsluiters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
DN inches NPS	1''1/2
Option certificate 3.1	Yes
Bonnet material	Cast iron EN GJS-500-7
Construction standard	DIN EN 1171
Type of paint	Epoxy
Paint coating thickness (µm)	250.00
DIN face-to-face standard	DIN 3202-1 F4
Face to face standard	EN 558 series 14. DIN 3202-1 F4
Tightness test standard	EN 12266-1. Rate A
Bonnet	Bolted
Closing direction	Clockwise (CW)
Opening device	Handwheel
Application	Water supply and distribution network
Shaft/stem matérial	Stainless steel AISI 304
Torque (Nm)	15
DN	DN40 - 1''1/2
Face to Face (mm)	140.0
Kv (m³/h)	118.0
Body material	Ductile iron
Gate material	Cast iron EN GJS-500-7 + EPDM
Bore	Full
PS (bar)	16
Connections	Flanged PN10/16
RAL (Paint)	5005
Seats	Cast iron
TS max (°C)	70
TS min (°C)	-10
Warranty period	2 years
Type of stem	Non-rising
Main product colour	Blue

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
10558	Flanged PN10/16 Ductile iron Full DN40 - 1''1/2 Flanged PN10/16	181040	S1010417	€56.93 (excl. btw)	add to cart
10559	Flanged PN10/16 Ductile iron Full DN50 - 2'' Flanged PN10/16	181050	S1010418	€66.30 (excl. btw)	add to cart
10560	Flanged PN10/16 Ductile iron Full DN65 - 2''1/2 Flanged PN10/16	181065	S1010419	€80.51 (excl. btw)	add to cart
10561	Flanged PN10/16 Ductile iron Full DN80 - 3'' Flanged PN10/16	181080	S1010420	€94.53 (excl. btw)	add to cart
10562	Flanged PN10/16 Ductile iron Full DN100 - 4'' Flanged PN10/16	181100	S1010421	€125.90 (excl. btw)	add to cart
10563	Flanged PN10/16 Ductile iron Full DN125 - 5'' Flanged PN10/16	181125	S1010422	€151.54 (excl. btw)	add to cart
10564	Flanged PN10/16 Ductile iron Full DN150 - 6'' Flanged PN10/16	181150	S1010423	€204.59 (excl. btw)	add to cart
